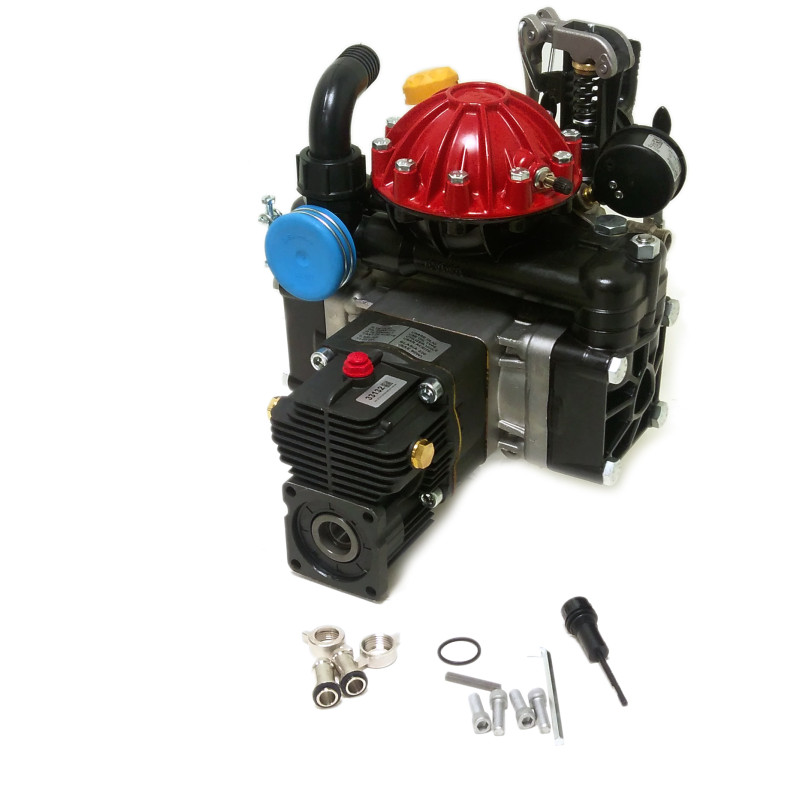

AR50 Diaphragm Pump w/ Gearbox & Regulator AR50-GR3/4-GCI
- Brand: A.R. North America
- Product Code: 15116
- Availability: 1
CAD $1,877.30
Specifications
Type : Semi-Hydraulic 2 Diaphragm Pump
Comes with an AR1636 Gearbox and GI40 Control Unit
Maximum Flow : 14.8 GPM (65.8 LPM)
Maximum Pressure : 580 PSI (40 bar)
Power Requirement : 5.2 HP
RPM : 550
Inlet/Outlet : 1-1/4” Suction – 1/2” Outlet
Dimensions
Dimensions : 13.8 x 12.9 x 11.9 in.
Weight : 44 lbs (20 kg)
The information is collected from manufacturer's official website. We do our best to keep it up-to-date
