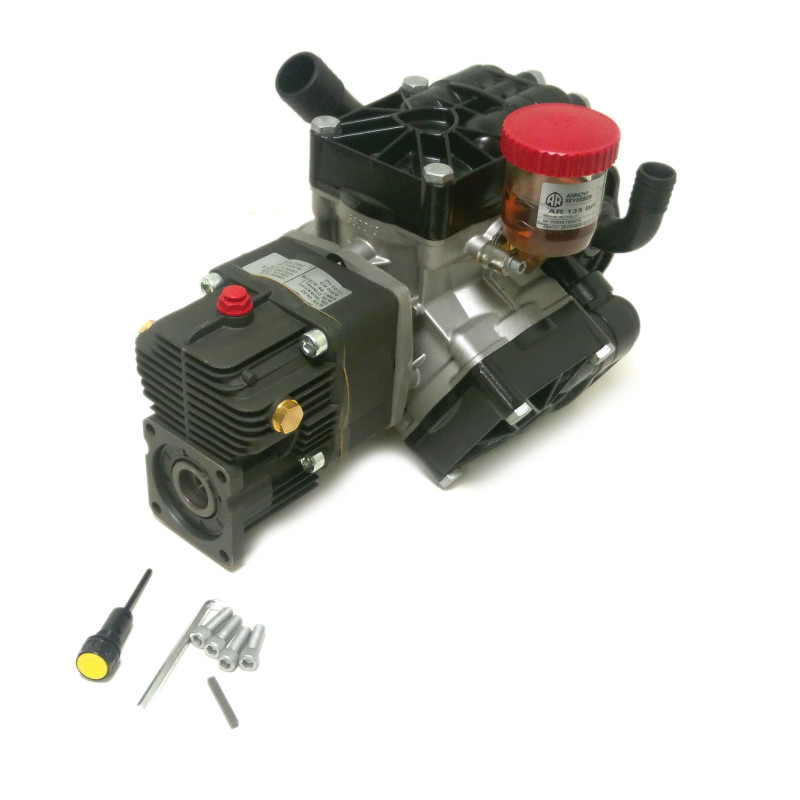

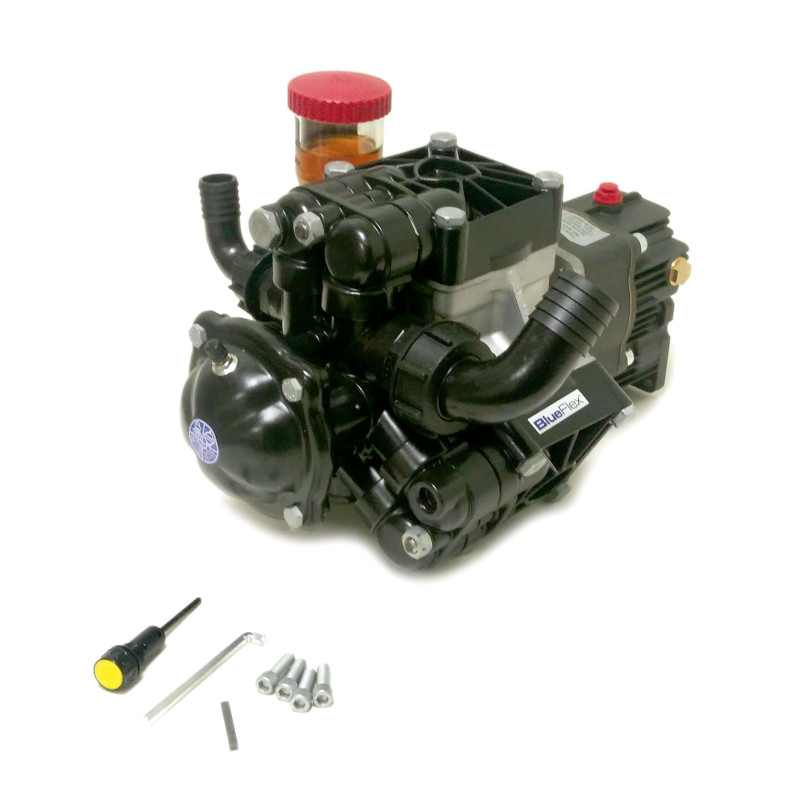

Pump Diaphragm AR135BP-GR3/4
- Brand: A.R. North America
- Product Code: 15335
- Availability: 1
CAD $2,178.72
Specifications
Type : Semi-Hydraulic 3 Diaphragm Pump
Comes with an AR1671 Gearbox
Maximum Flow : 33.8 USGPM (128 LPM)
Maximum Pressure : 290 PSI (20 bar)
Power Requirement : 5.5 HP
RPM : 550
Inlet/Outlet : 1-1/2" – 1” Outlet

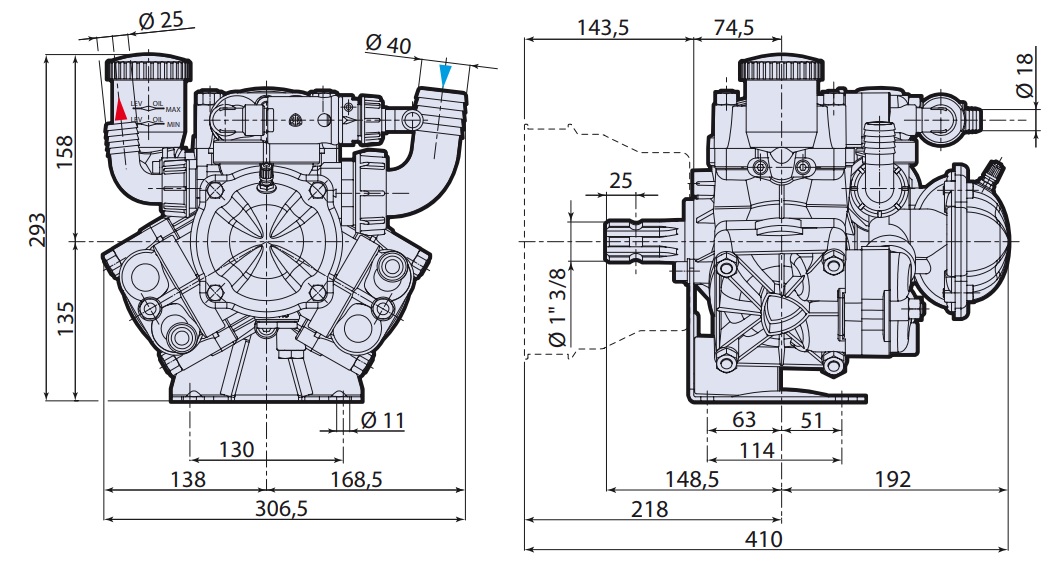

Dimensions
Dimensions : 12 x 12 x 12 in.
Weight : 34.2 lbs (15.5 kg)
The information is collected from manufacturer's official website. We do our best to keep it up-to-date
