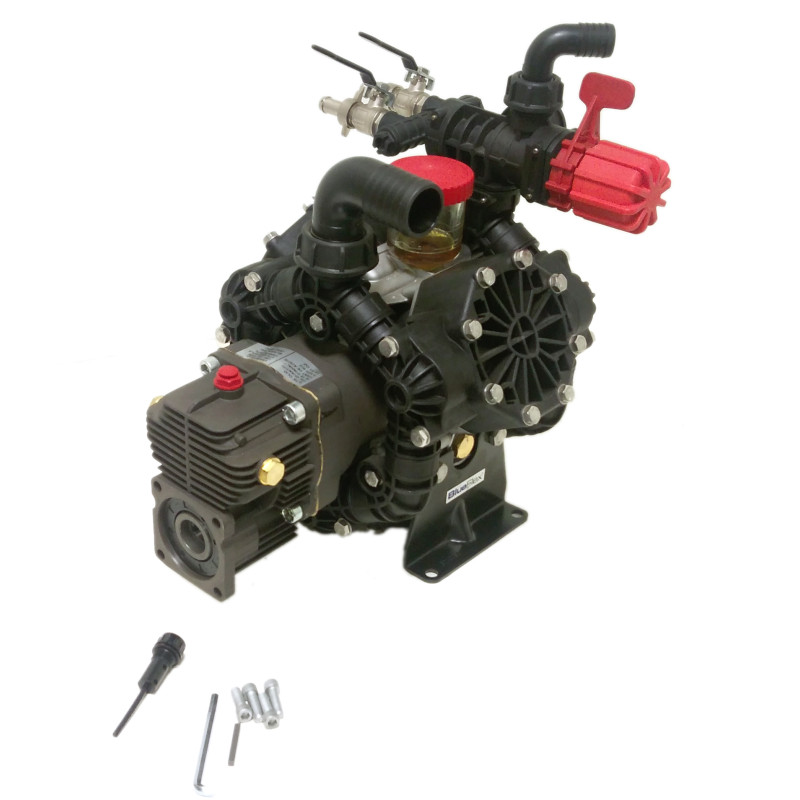

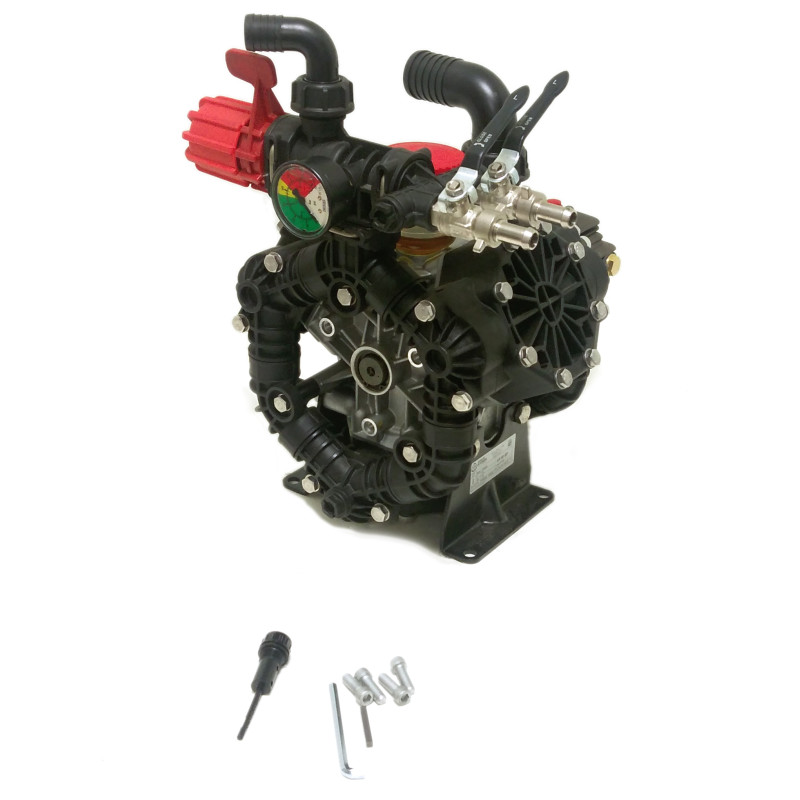

Pump Diaphragm AR80BP-GR3/4-GCI
- Brand: A.R. North America
- Product Code: 15882
- Availability: 1
CAD $2,077.08
Specifications
Type : Semi-Hydraulic Three Diaphragm Pump
Pump comes with an AR31185 gearbox and a GS35S control unit
Maximum Flow : 20.2 GPM (76.4 LPM)
Maximum Pressure : 290 PSI (20 bar)
Power Requirement: 3.4 HP
RPM : 550
Inlet/Outlet : ø40 mm Suction – 1” outlet

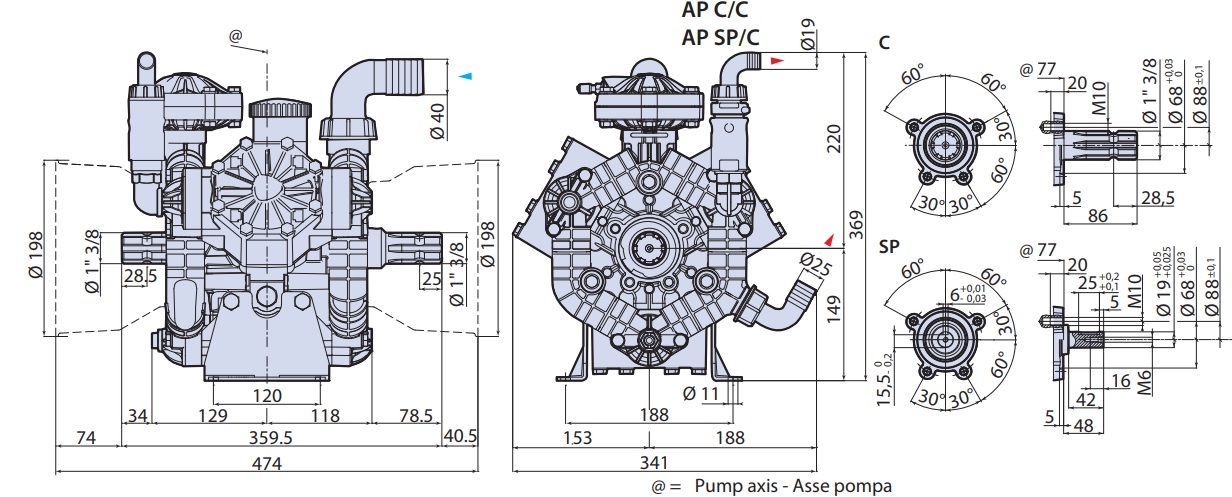

Dimensions
Dimensions : 14 x 14 x 14 in.
Weight : 40 lbs (18.2 kg)
The information is collected from manufacturer's official website. We do our best to keep it up-to-date
