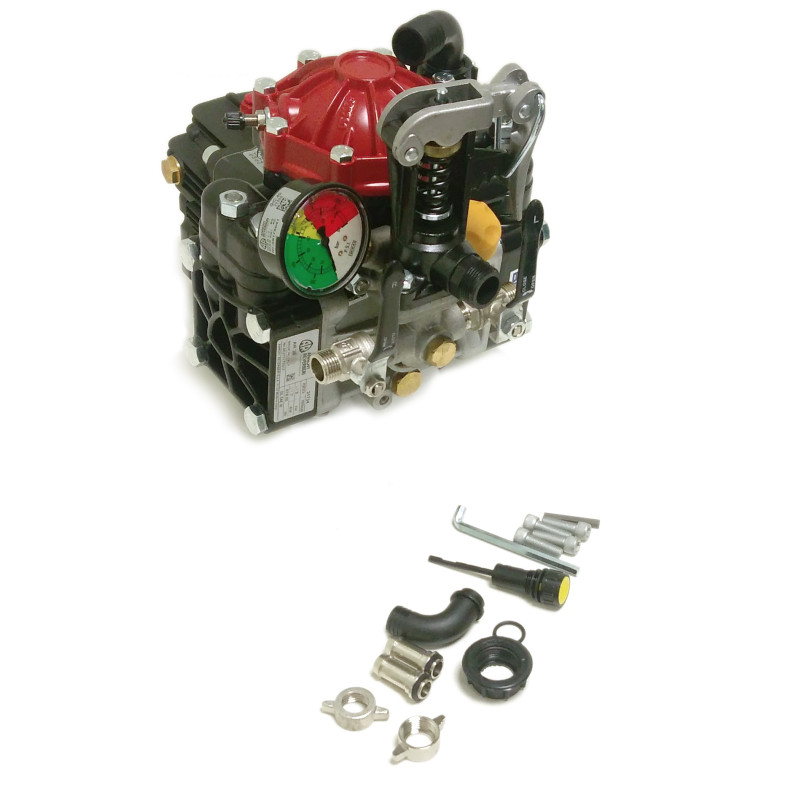

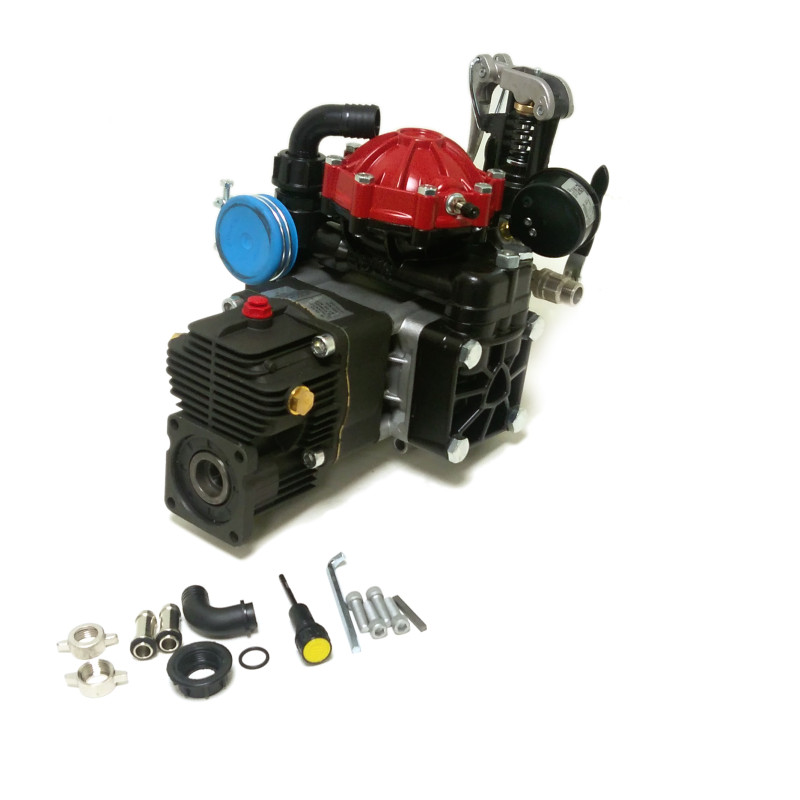

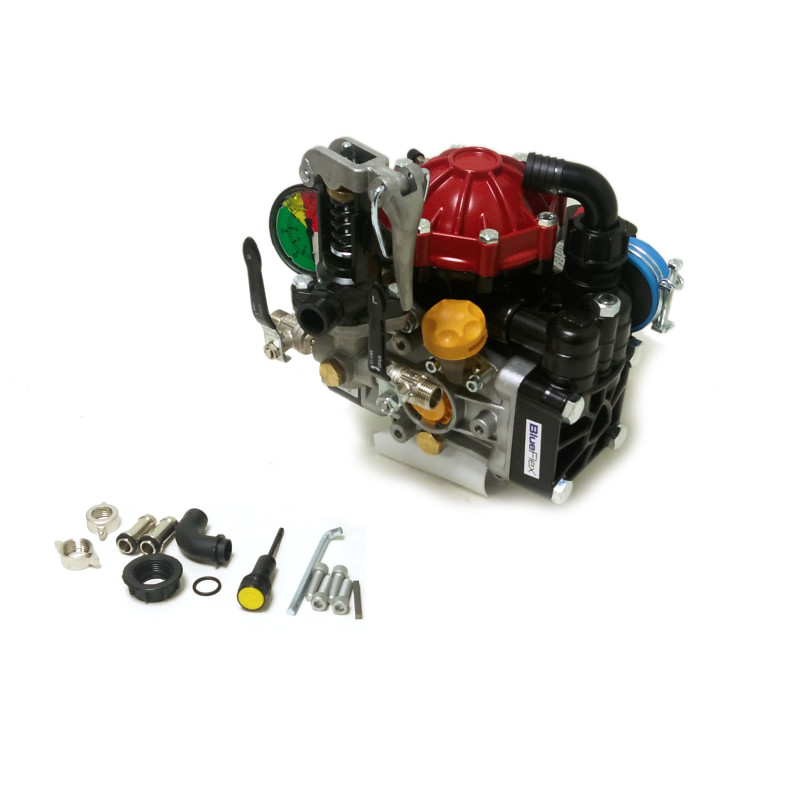

AR30 - Diaphragm Pump w/ Gearbox & Regulator AR30-GR3/4-GCI
- Brand: A.R. North America
- Product Code: 15570
- Availability: 1
CAD $1,484.88
Specifications
Type : Semi-Hydraulic Two Diaphragm Pump
Comes with GI40 control unit and AR1636 gear reducer
Maximum Flow : 9.6 GPM (36.2 LPM)
Maximum Pressure : 580 PSI (40 bar)
Power Requirement : 2.9 HP
RPM : 550
Inlet/Outlet : 25mm Suction / 13mm Outlet

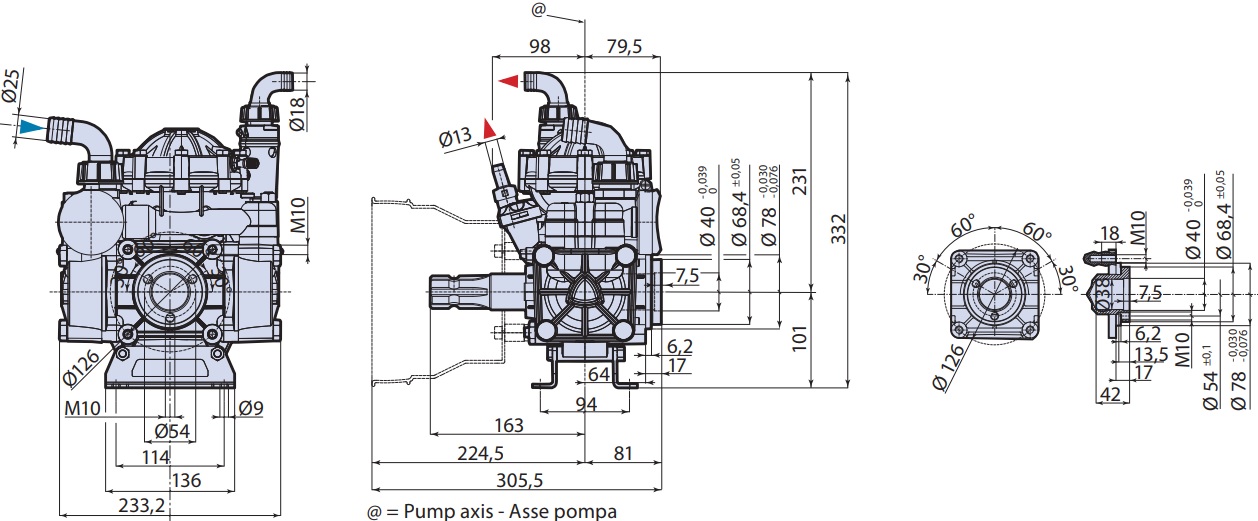

Dimensions
Dimensions : 9.3 x 12.6 x 12 in.
Weight : 33 lbs (15 kg)
The information is collected from manufacturer's official website. We do our best to keep it up-to-date
